泽霖硅钢材料 | 专门从事硅钢产品生产、加工、销售和服务一体化生产企业
发布:2022-7-25


东莞市泽霖硅钢材料有限公司

Dongguan Zelin Silicon Steel Materials Co. , Ltd.

展出产品:硅钢片材料、日本进口硅钢片、

电机产品定制、精密分条等

展位号:C039


公司简介





东莞市泽霖硅钢材料有限公司是一家专门从事硅钢产品生产、加工、销售和服务一体化生产厂家。工厂位于拥有世界工厂之称的东莞。我厂主营国内外优质无取向硅钢片、取向硅钢片;工厂仓库自备大量材料库存,0.05mm至0.65mm等材料仓储齐全存货充足;特别是在0.1mm超薄硅钢片上我公司资源比较充足。

我厂拥有完整硅钢加工生产线,整套大型纵剪、横剪生产线、大型切板设备、小型高精密分条设备最小支持5mm加工;

线切割加工服务,多种线切割机床可供选择,可提供快走丝、中走丝、沙迪克慢走丝加工服务;加工精度有保障,快走丝公差为±0.03,中走丝公差±0.01,慢走丝精度±0.006;

高精密激光切割设备加工精密度可达±0.02,切面光滑、表面无毛刺、切割质量好基本没工件热变形、不损伤工件、可加工任意图形、不受材料硬度影可快速加工出样;

专业承接各类电机铁芯定转子定制加工、线切割定制样件一线切割小批量试产、模具开发、可加工0.05mm-0.65mm厚度硅钢片,适用于新产品开发阶段的打样,以及复杂多孔型号产品的小批量生产。


Dongguan Zelin Silicon Steel Material Co. , Ltd. is a professional silicon steel products production, processing, sales and service integration manufacturers. The factory is located in Dongguan, known as the factory of the world. Our main domestic and foreign high-quality non-oriented silicon steel sheet, oriented Silicon Steel Sheet, factory warehouse own a large number of material inventory, 0.05 mm to 0.65 mm, etc Especially in the 0.1 mm ultra-thin silicon steel sheet on our company's resources are relatively sufficient. I plant has a complete silicon steel processing lines, a full set of large-scale vertical and horizontal shear production lines, large-scale plate cutting equipment, small high-precision slitting equipment minimum support 5mm processing; wire cutting processing services, a variety of wire cutting machine tools available, the processing accuracy is guaranteed, the tolerance is ± 0.03 for the fast wire, ± 0.01 for the Middle Wire and ± 0.006 for the slow wire Professional to undertake all kinds of motor core stator and rotor customized processing, wire-cut customized samples a small batch of wire-cut trial production, mold development, processing thickness of 0.05 mm-0.65 mm silicon steel sheet, suitable for new product development phase proofing, and small-scale production of complex, porous models.


部分展品


1









硅钢片材料


Silicon steel sheet





品介绍



硅钢片,英文名称是silicon lamination, 它是一种含碳极低的硅铁软磁合金,一般含量为0.5~4.5%。加入硅可提高铁的电阻率和最大磁导率,降低矫顽力、铁芯损耗(铁损)和时效


Silicon steel sheet, the English name is silicon lamination, it is a soft magnetic alloy of ferrosilicon with extremely low carbon content, generally containing 0.5 to 4.5% of silicon. The addition of silicon increases the resistivity and maximum permeability of iron and reduces coercivity, core loss (iron loss) and magnetic aging.


2




日本进口硅钢片


Silicon steel sheet imported from Japan





品介绍




日本进口超薄0.05 、0.1硅钢片其中涵盖0.1mm:10jnex900(6.5%)含硅量;超薄0.05mm:ST-050;0.1mm:ST-10; 0.1mm:GT-100等各种超薄材料。


Ultra-thin 0.05 and 0.1 silicon steel sheets imported from Japan include 0.1mm: 10jnex900 (6.5%) silicon content; ultra-thin 0.05mm: ST-050; 0.1mm: ST-10; 0.1mm: GT-100 and other ultra-thin Material.


3

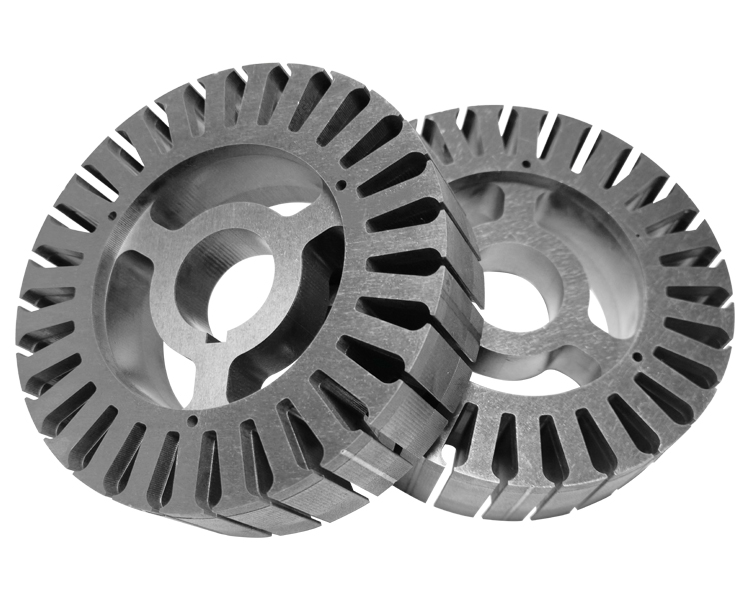

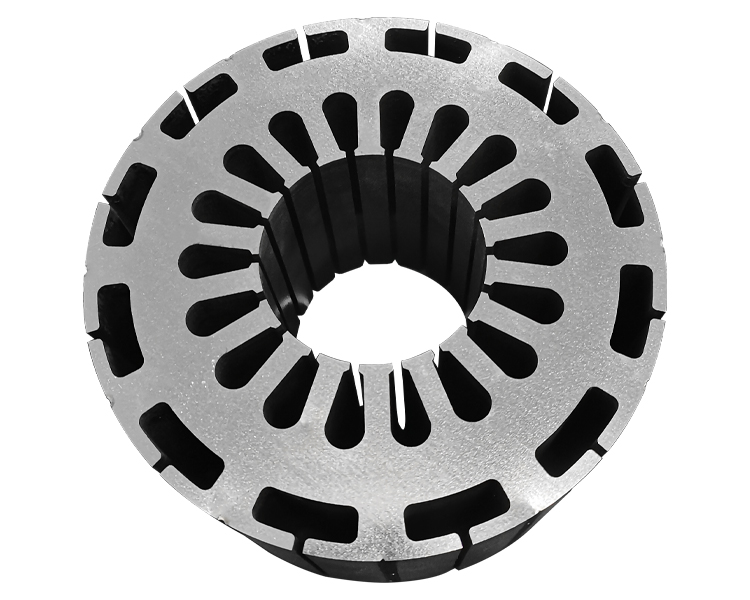

电机产品定制


Motor product customization





品介绍




快走丝、中走丝、慢走丝,适用各类多孔或异形,加工精度有保障可加工任意大小定转子,最大可加工30度斜槽;专业承接各类电机铁芯定转子定制加工、线切割激光切割定制样件一线切割小批量试产。


Fast wire, medium wire, slow wire, suitable for all kinds of porous or special-shaped, the processing accuracy is guaranteed, and the stator and rotor of any size can be processed, and the max. Cutting Laser Cutting Customized Sample One-Line Cutting Small Batch Trial Production.


4

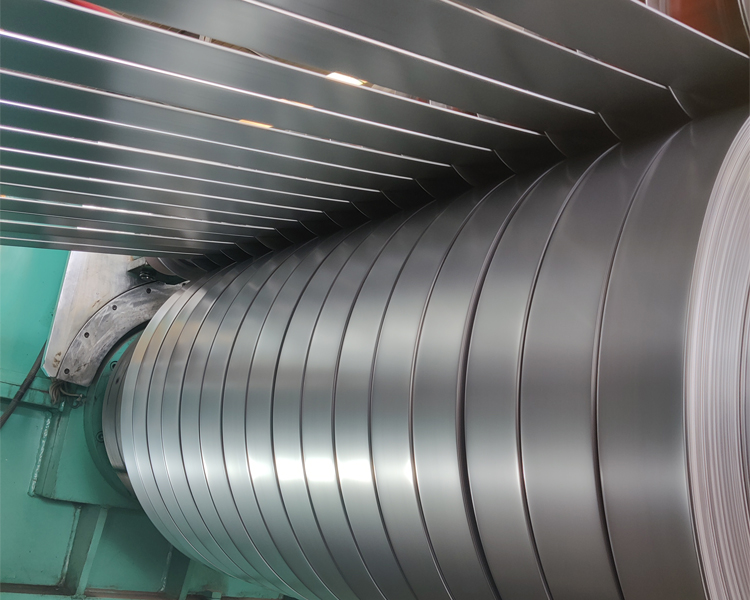

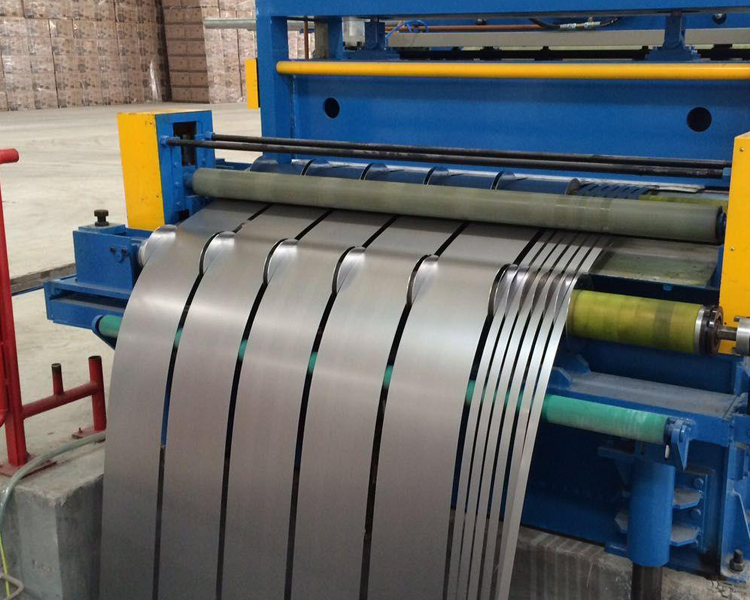

精密分条


Precision slitting





品介绍




工厂拥有完整硅钢加工生产线,母卷分条加工,切板,整套大型纵剪、横剪生产线、大型切板设备、小型高精密分条设备最小支持4mm加工,分条公差±0.01。


The factory has a complete silicon steel processing production line, parent coil slitting processing, cutting board, a complete set of large-scale longitudinal shearing and cross-cutting production lines, large-scale cutting board equipment, and small high-precision slitting equipment. Minimum support for 4mm processing, slitting tolerance ± 0.01.
