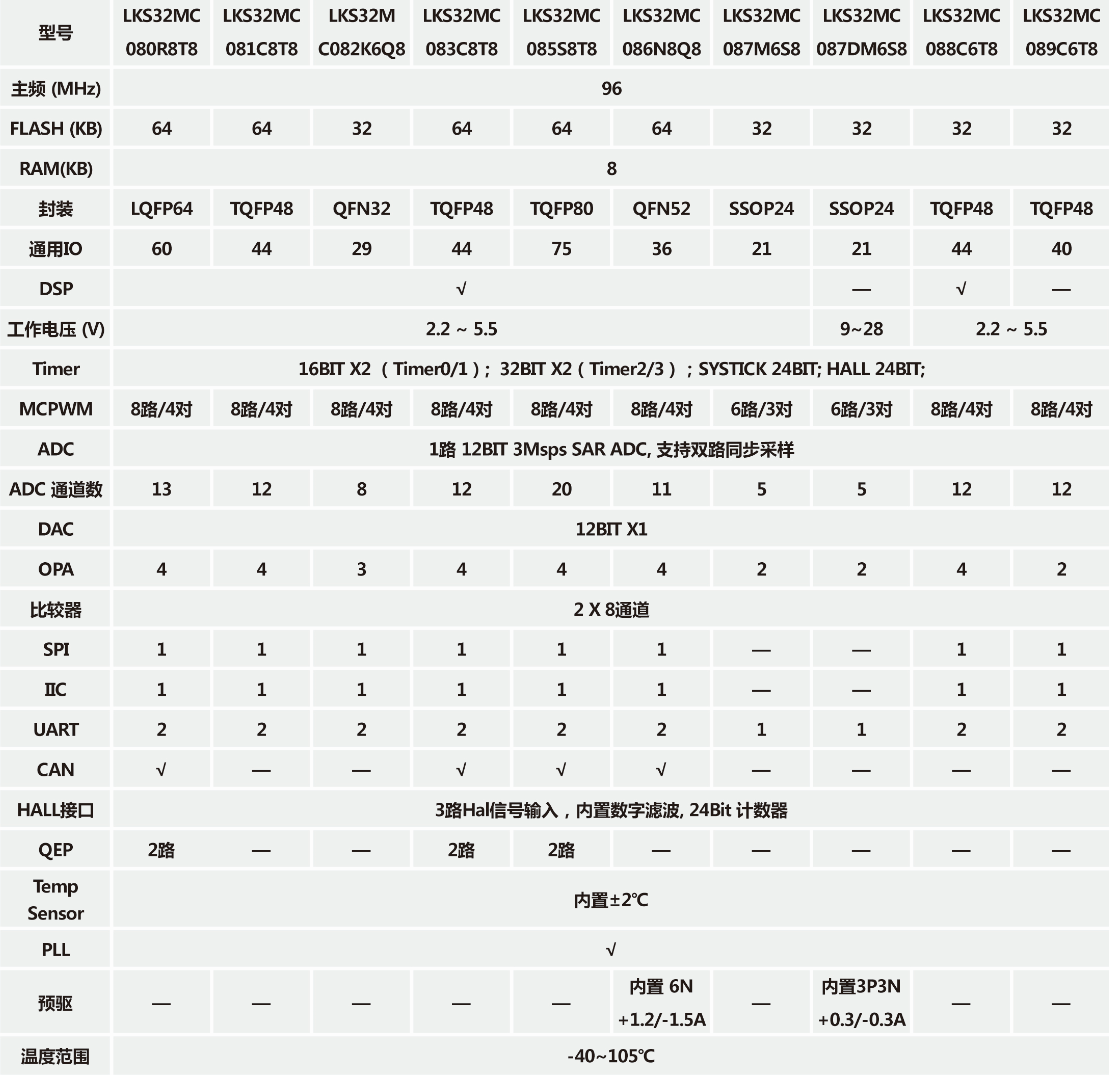

LKS08系列MCU是凌鸥创芯针对电机驱动市场，推出的高性能电机运动控制芯片。芯片内部集成仪表级全差分可编程增益放大器+差分ADC，不需要电压偏置就可以处理正负信号；集成同步双采样3Msps 12BIT高速ADC，集成全温度范围千分之五电压基准源；集成96MHz 32BIT MCU+DSP,自主指令集DSP可作为异构独立核心运行程序，三角函数运算、开方运算100ns内完成；工作温度范围-40~105℃，内部RC全温度范围时钟偏差1%以内，通过6KV人体模型引脚接触放电，通过15KV非触式空气静电放电测试。

LKS08 is a series of high-performance motor-control MCU. These chips integrate instrument grade fully-differential programmable gain amplifiers and differential Analog-Digital-Converter (ADC), which could process positive/negative input signals without voltage bias. The ADC provides a 12bit resolution and 3Msps sampling rate. Voltage reference could achieve a ±5‰ accuracy in full temperature range. The internal 32bit CPU and DSP are running on a clock of 96MHz. The DSP is based on a customized instruction set architecture and could be used as an independent heterogeneous core running parallelly with CPU. It is capable of performing a CORDIC/SQRT/DIV multi-cycle instruction in less than 100ns. Working temperature is between -40~105℃, The internal RC clock could achieve a ±1‰ accuracy in full temperature range. The chip has passed 6KV HBM contact ESD test and 15kV non-contact air ESD test.

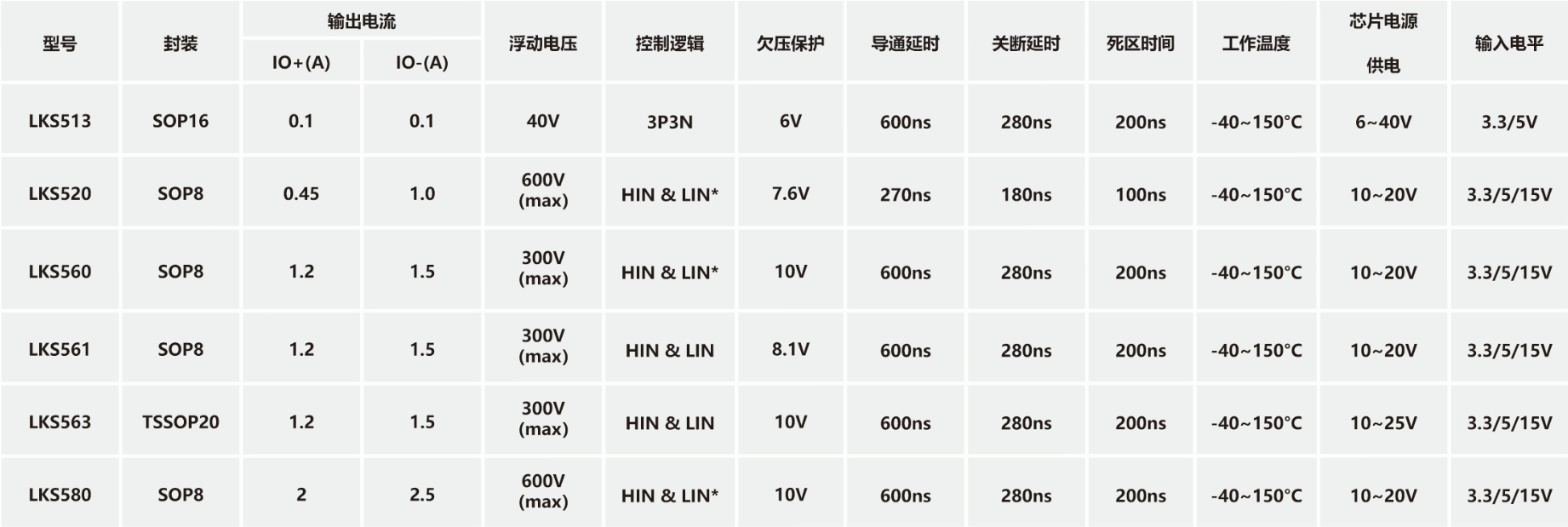

凌鸥创芯拥有多款颇具竞争力的MOSFET、IGBT栅极驱动芯片，内部集成了逻辑信号输入处理电路、死区时间控制电路、闭锁电路、电平位移电路、脉冲滤波电路以及输出驱动电路，专用于无刷控制器中的驱动电路。在电动自行车、家电、电动工具、工业控制等领域均应用广泛。

Linko Semiconductor could also provide competitive MOSFET, IGBT gate driver products. These chips integrate logic input signal processing unit, dead zone timing control unit, lockout circuit, level-shifter, pulse filter and output driver. They are targeting brushless motor controllers in electric bicycle, household appliance, electric power tool, and industrial control applications.

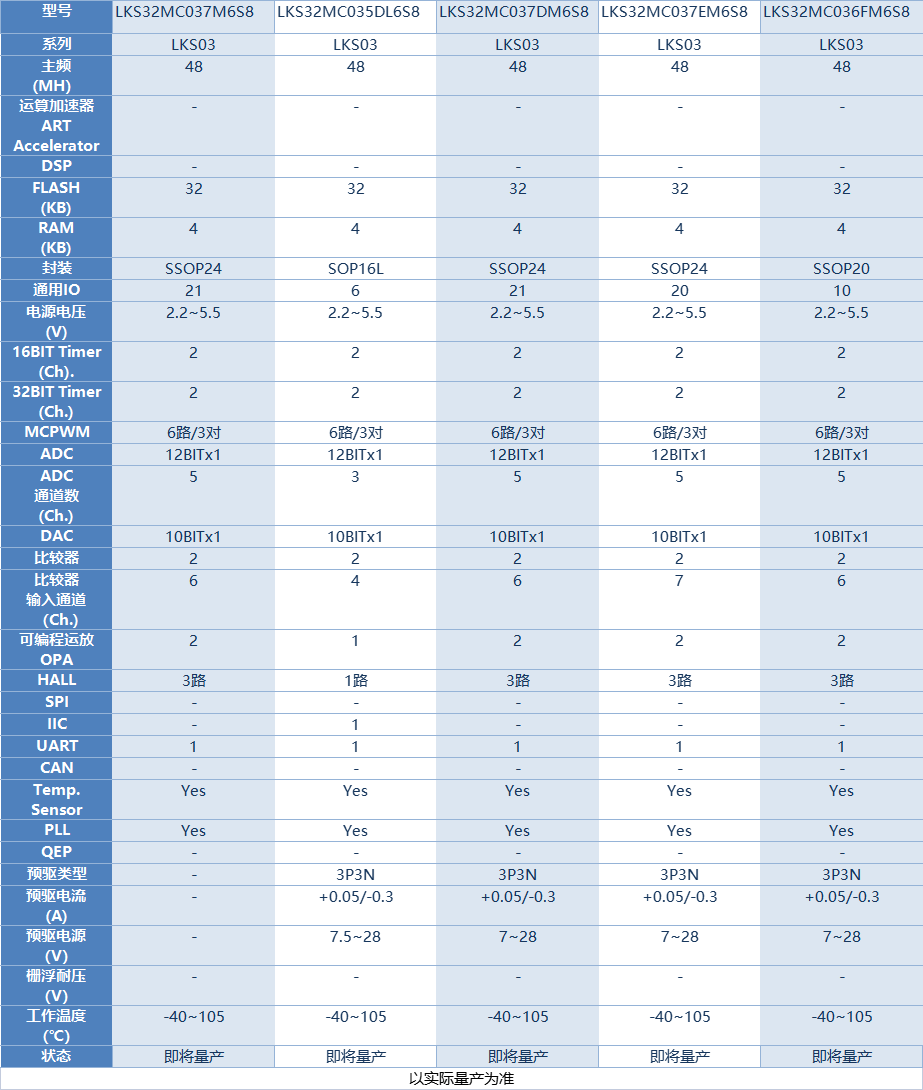

LKS03系列MCU主要优势有：高可靠性、高集成度、最终产品体积小、节约BOM成本。芯片内部集成2路高速运放和两路比较器，可满足单电阻/双电阻电流采样拓扑架构的不同需求；内部高速运放集成高压保护电路，可以允许高电平共模信号直接输入芯片，可以用最简单的电路拓扑实现MOSFET电阻直接电流采样模式；集成硬件MOSFET温度漂移补偿电路，确保电流采样精度；应用专利技术使ADC和高速运放达到最佳配合，可处理更宽的电流动态范围，同时兼顾高速小电流和低速大电流的采样精度；整体控制电路简洁高效，抗干扰能力强，稳定可靠；单电源2.2V~5.5V供电，确保了系统供电的通用性。

LKS03x series is even more compact, while not less stable or reliable. A smaller product size and less BOM cost could be expected. The integration of 2 high-speed operational amplifiers and 2 comparators makes it easy to meet the different requirements of single-resistor/ dual-resistance current sampling topology; the internal high-speed operational amplifier integrates a high-voltage protection circuit, which allows high-level common-mode signals to be directly input to the chip. You could use the simplest circuit topology to realize the direct current sampling mode of MOSFET resistance; And a hardware MOSFET temperature drift compensation circuit is integrated to ensure the current sampling accuracy; Application of patented technology makes the ADC and high-speed operational amplifier achieve the best coordination, which can handle a wider dynamic range of current, while taking into account the sampling accuracy of high-speed small current and low-speed large current; The overall control circuit is simple and efficient, with strong anti-interference ability, stable and reliable; Single power supply 2.2V~5.5V power supply, to ensure the versatility of the system power supply.

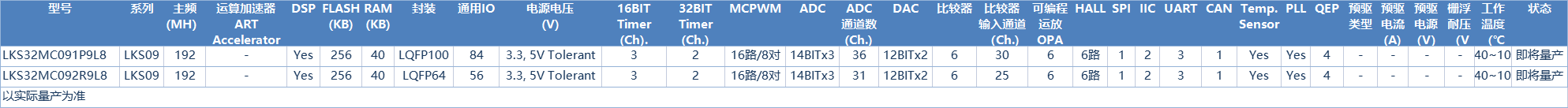

LKS09系列MCU是32位RISC核心的面向电机控制应用的专用处理器，集成FPU和DSP，主频高达192MHz，配备双电机驱动接口和丰富外设资源，存储资源为256kB flash+40kB SRAM，同时支持存储空间重映射，使用SRAM来作为代码运行加速。

The LKS09 series MCU is a 32-bit RISC core dedicated processor for motor control applications. It integrates FPU and DSP. The main frequency is up to 192MHz. It is equipped with dual motor drive interfaces and rich peripheral resources. The storage resources are 256kB flash+40kB SRAM and support address space remapping to enable code execution speed-up in SRAM.
