Metis仪器和设备NV

Metis Instruments & Equipment NV

展位号：2533

展出产品：磁滞测定器、

磁性测试仪、充磁机&夹具等

联系方式：+32-16-298344

网址：www.metis.be

邮箱：contact@metis.be

公司简介

       Metis Instruments成立于1998年，是工业磁性技术合作伙伴，致力于供应磁化设备和磁测量系统。使用我们的旗舰测量系统HyMPulse, 可以测量自由样品的完整磁滞曲线。由于不再使用极靴和获得专利的传感器，最终产品的测量现在又变得简单了。通过额外的加热和冷却，该仪器能够在-40℃到220℃的温度范围内跟踪磁性能。

       如今，常用的磁化技术包括使用由由电容器放电驱动的铜绕组（带或不带极靴）来产生强磁场。挑战在于如何在磁体中获得正确的磁场轮廓。作为在磁化过程中使用有限元模型的先驱，Metis Instruments在处理大型和小型组件的磁化方面具有丰富的经验。我们已经开发了多种技术，可以快速设计定制解决方案。

As a technology partner in industrial magnetics established in  1998, Metis instruments is a supplier of magnetizing equipment and magnetic measurement systems. Measuring the complete hysteresis curve of free form samples is possible with our flagship measurement system: the HyMPulse. With the elimination of pole shoes and patented sensors, measuring your final product now becomes simple again. With additional heating and cooling, the instrument is capable of following the magnetic properties over a temperature range from -40°C to 220°C.

The common technology for magnetizing nowadays consists of generating a strong magnetic field using copper windings – with or without pole shoes – driven by a capacitor discharge. The challenges are in obtaining the right field profile in the magnets. As a forerunner using finite element modelling in magnetization processes, the company has extensive experience in handling the magnetization of large as well as small assemblies. Several techniques have been developed allowing to rapidly engineer custom solutions.

部分展品

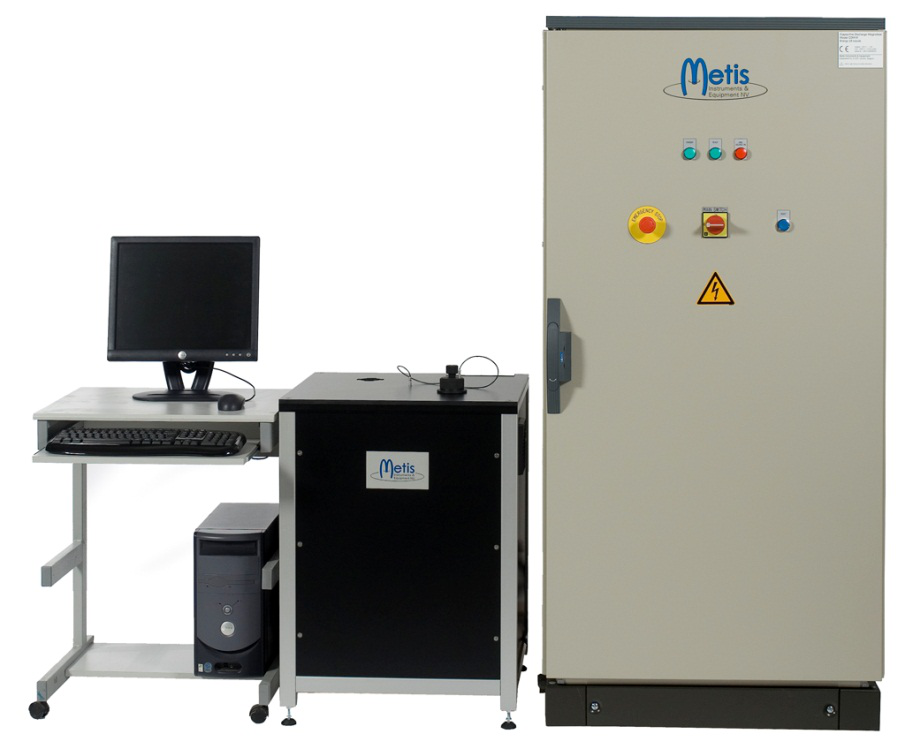

1、磁滞测定器  HyMPulse

产品介绍

领先的磁滞测定器，用于测量高级永磁材料（铁氧体，NdFeB，SmCo）的退磁曲线（Br，HcB，HcJ和BHmax）。

这款磁性能测试仪可突破传统磁滞测定器的局限性。通过省去极靴并使用类似于亥姆霍兹线圈的专利传感器，HyMPulse几乎可以分析所有样品几何形状和所有永磁材料。

The leading hysteresis meter for measuring the demagnetizing curve (Br, HcB, HcJ and BHmax) of advanced permanent magnetic materials (Ferrite, NdFeB, SmCo).

This magnetic properties tester is made to overcome the limitations of a classical magnetic hysteresis meter. By eliminating pole shoes and using a patented sensor similar to the Helmholtz coil, the HyMPulse allows the analysis of virtually any sample geometry and any permanent magnetic material.

2、磁性测试 HyMAC

产品介绍

多功能的测试仪器，用于确定软磁性材料（如电工钢板，非晶态导线和带状材料）的交流磁性能。

可测量磁性损耗和从BH曲线得出的其他性能。它允许对软磁材料进行进出检查，特别是用于变压器铁芯和电动机的电工钢板。

可探测的数量以及定制功能使HyMAC用于各种几何体和应用领域。

A versatile testing platform for determining the AC magnetic properties of soft magnetic materials like electrical steel sheet, amorphous wire and ribbons.

This magnetic properties tester measures losses and other properties derived from the BH curve. It allows incoming and outgoing inspection of soft magnetic materials, typically electrical steel sheet for transformer cores and electrical motors.

The number of available probes, and the customization makes the HyMAC useful for large range of geometries and application areas.

3、充磁机&夹具 Magnetizers & Fixtures

产品介绍

电容放电的充磁机（4至200+千焦&3千伏电压）可为充磁夹具提供高电量。

夹具：具有优化的磁场，使用能量少，具有足够的磁极过渡，优化的应力分布以及通过内部冷却实现的高重复率。各种形状的磁性轮廓都可定制。

灵活的模块化生产解决方案可磁化各种几何体。

Capacitive discharge magnetizer (Energy range 4 till 200+ kJ & 3 kV voltage) delivering high power for magnetizing fixtures.

Fixtures with optimized magnetic field using less energy, with adequate pole transitions, optimized stress distribution and high rep rate through internal cooling. All kinds of shape of the magnetic profile are customizable.

Flexible and modular production solution allow different geometries to be magnetized with moderate extra investments.
